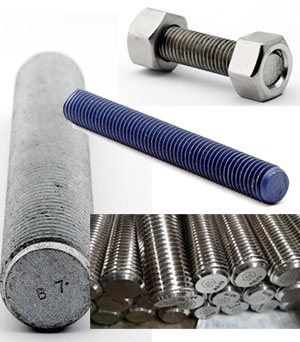

STUD Bolts / Engineering STUD/ Full Threaded Bars

Our offer include complete range of Stud bolts/ Full threaded rods conforming to ASTM A193 Gr. B7 / B7M, B16, A320 Gr. L7 / L7M, L 43. Stainless Steel AISI 304 / 304L/ 316 / 316L , B8 / B8M Class 1 & 2, B8T etc.
Duplex and Super Duplex grade are available.
ASTM A453 GR 660 CL A, B AND D and other Special Grades available on request.Studs are available in various coatings like Zinc Plating, HDG & Xylan (PTFE)/ Xylar 1424 Coating in different colours.

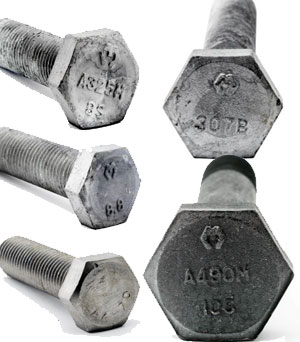

Structural Hex Bolts And Heavy Hex Bolts:

We stock 6 mm to 64 mm diameter in various length Normal and Heavy Hex Bolts. We also have in above in imperial sizes also.
Dimensions as per DIN, ASME / ANSI B18.2.1 / ASME B18.2.3.3M for B7 Bolts For A325M as per ASME B.18.2.3.7M and A490M as per B18.2.6 or as per your specification.
Material and Physical properties per ASTM - A325, A490, A307, A354 , A449, A193 Gr.B7/B7M, EN ISO 14399 , BS4190 Cl.4.6/ 8.8/ DIN931-933 / BS3692 Cl.8.8,10.9,12.9 / Stainless Steel AISI 304/316/B8/B8M/ B8T

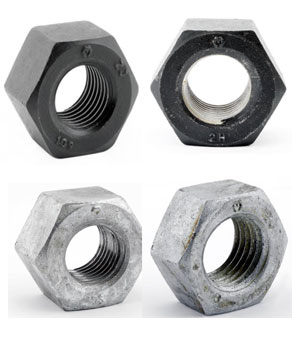

Hex Nuts:

SIZES RANGING FROM M3 to M100; 1/4” to 4”.
Dimensions as per ASME / ANSI B18.2.2 /
ASME B18.2.4.6M for Nuts
Finish: Black, Zinc plated, HDG, PTFE Coated, ENP Coated. Properties confirming to ASTM A194 Gr.2H, 2HM, G7, 7M, B16, A563M -10S
DIN 934 / ISO 4032 / BS3692 / BS4190, Cl. 4, 8, 10 & 12 and more.
Stainless Steel AISI 304 / 316, ASTM A194 Gr.8/8M /8MA and various other grades.

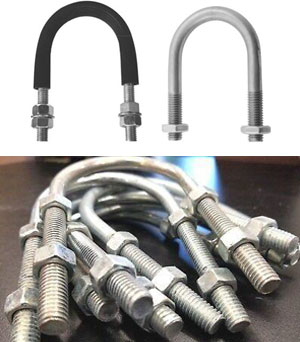

U Bolts And Pipe Clamps:

All types of “U” bolts as per standard or special sizes are available.
U bolts can be made in various grades and dimensions.
U bolts in Plain finish, Zinc Coating, PTFE Coating & Neoprene coating are manufactured and supplied Pipe Clamps are fabricated as per your requirements and supplied.

Carriage Bolts, Eye Bolts

As per requirements and drawing the Carriage Bolts, Cup headed Bolts and Eye Bolts are manufactured and supplied.

Hex Cap Screw

DIN 912 Allen head cap screw in various grades and sizes available

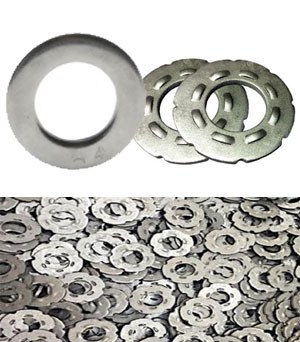

Washers:

Washers like - plain round washers, Big & small OD washers, Spring Lock Washers, Spring washers heavy duty, Serrated Tooth Washer, Star Washer, Tab Washer with one & two Tab are available.
Belleville, Spherical Washers Type C & Conical Seats Type (D, G) are available
DTI ( Direct Tension Indicators ) are Available Ex – Stock in various Grades and Sizes. Belleville, Spherical Washers Type C & Conical Seats Type (D, G) are available

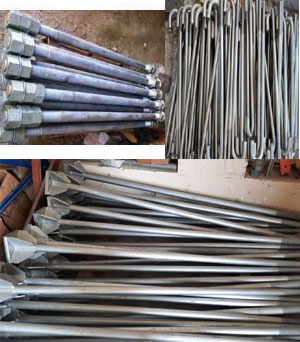

Anchor Bolts / Foundation Bolts

SFasteners specializes in custom manufactured Anchor Bolts as per the client’s drawings as well as meeting the International Standards as well.
Straight Type, L type, J Type, T Type, Plate welded, Plate & Sleeve welded can be manufactured.
M 6 to M200 (and Imperial equivalents) up to length 4 meters.
Material grades: ASTM A 36, A307, BS 4360, ASTM F 1554 , ASTM A193 B7, BS 4190 Gr. 4.6, 8.8, 10.9, 12.9 and etc.

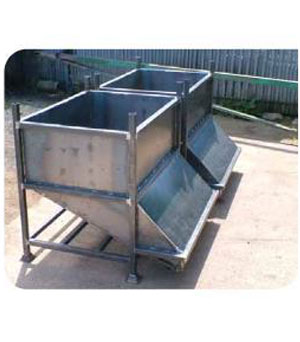

Fabrication:

Fabrication and supply of Non Standard Flanges as per the drawing, Pipe clamps, Ladders, Platforms are fabricated. Also we can provide on-site fabrication services.
We have experienced team to assist in meeting your special fabrication requirements.

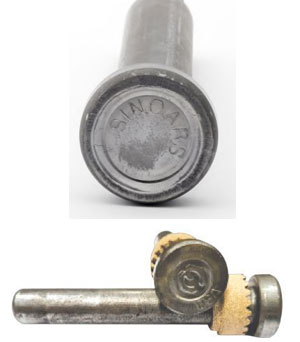

ARC Welding STUD

The Arc Welding Stud also known as shear connector is used in the construction of tall buildings, bridges and steel structures. The drawn-arc process produces a full cross-sectional weld forming a bond that is greater than the surrounding material. it improves the strength of the structure.

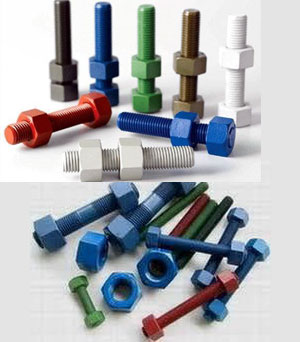

Surface Coating

Following surface coatings can be done depending on your requirements.
Xylan1070 / Xylan1424 PTFE Coating in various colors (Whit ford)
Zinc Plating (ASTM B633)
Zinc Plating and Yellow chrome passivated (ASTM B633 & D478)
Cadmium Plating (ASTM B766)
Hot Dip Galvanizing (ASTM F2329 and ASTM A153 CL C)
Mechanical Galvanizing (ASTM B695)
Electro less Nickel Plating (ASTM B733)
Zinc Nickel Coating (ASTM B841)
Phosphate coated Fasteners are available.
All above can be done as per BS EN ISO Standards also,

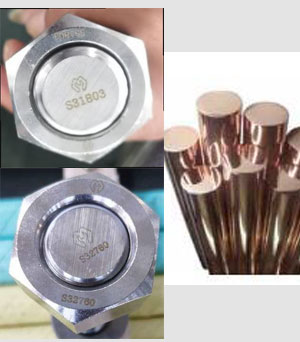

Special Alloys:

The fasteners and other piping products can be supplied in special alloys like:
17-4 PH, 904L, A-286, B8T (321), 347, 410, Nickel Alloy , Copper Alloy, Aluminum, Brass, Bronze, Carpenter 20®, Duplex Stainless, Super Duplex, Hastelloy®, Inconel, Monel®, Nylon, Titanium and many more.
