Product and Services
Wall Guard
Corner Guard

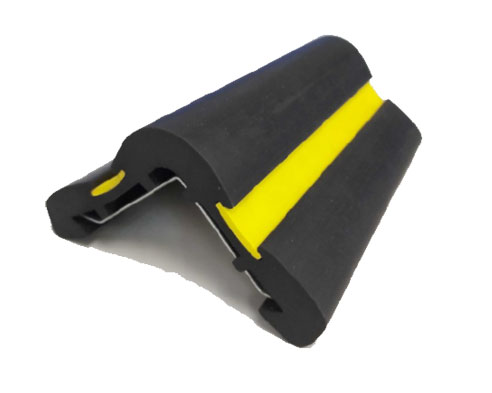

Rubber corner guard
Corner guard Wing sizes 65mm, 75mm, 85mm, 100mm, and 120mm with GI Insert

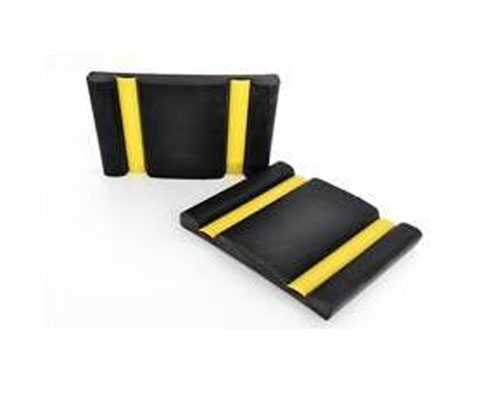

Rubber wall guard
Wall guard with 25mm, 30mm 35mm 50mm thickness & wide 200mm to 300mm

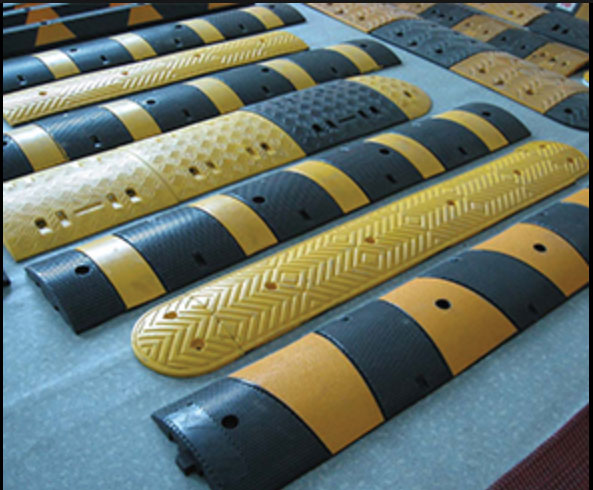

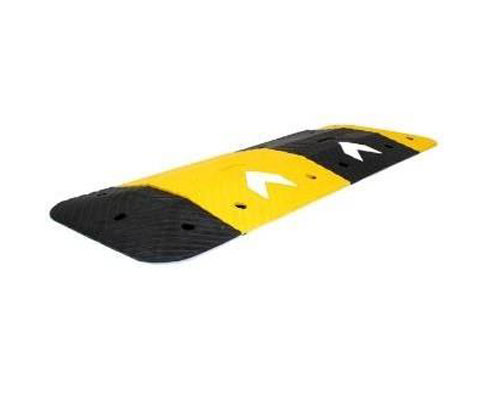

Speed hump
Speed hump 50mm, 75mm thick with 400mm wide & 500mm long

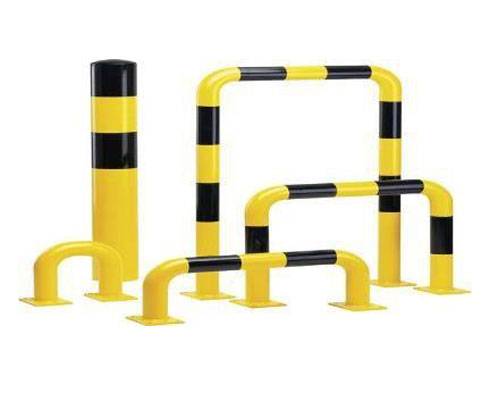

Bollards & Barriers
Bollards varies in customized sizes & made of stainless steel, mild steel & galvanized steel

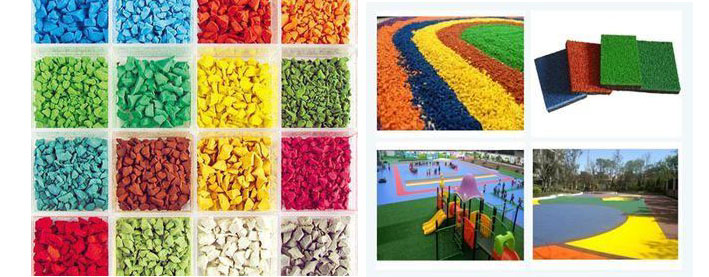

EPDM Rubber Granules For Sports Flooring

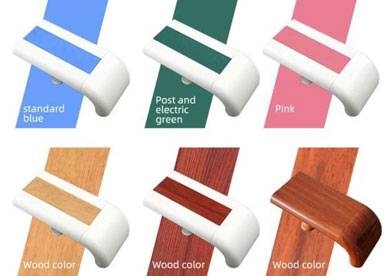

Vinyl/plastic Handrails For Hospitals
Vinyl Protections
Corner Guard
Available in different Size, Shapes & Colours
Wings Sizes : 30x30mm, 50x50mm, 70x70mm
Types : Glue, Aluminium Back Up
Vinyl Thickness : 1.6mm, 1.8mm, 2mm
Aluminium Thickness : 1.2mm, 1.4mm, 1.6mm, 1.8mm
Vinyl Protections

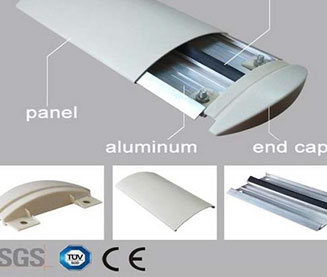

Wall Guard
Available in different Size, Shapes & Colours
Width: 140mm, 150 mm, 160 mm
Vinyl Thickness: 1.6mm, 1.8mm, 2mm
Aluminium Thickness: 1.4mm, 1.6mm, 1.8mm, 2mm

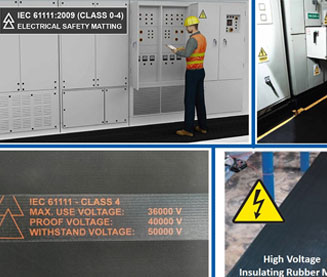

Electrical Insulation Mats
Electrical Insulation Mats, crafted from premium elastomer rubber, offer robust protection
against electric shock resulting from earth fault occurrences. These mats are designed for both
outdoor and indoor use, commonly positioned in front of electrical panels, switch gears, and high
voltage equipment to ensure operators and users operate in a safe environment.
By insulating workers from the ground, Electrical Insulation Mats prevent direct contact with
electrical current, mitigating the risk of shocks. The selection of the appropriate class is
contingent upon the maximum nominal voltage of the network.
| Available sizes: |
| 6mm thick x 1200mm wide x 10 meter long (roll) CLASS 3 |
| Class 3 : 16000V AC/ 16 KV |
| 8mm thick x 1200mm wide x 10 meter long (roll) CLASS 3 |
| Class 3 : 30000V AC/30KV |
| 10mm thick x 1000mm wide x 10 meter long (roll) CLASS 3 |
| Class 3 : 36000V AC/ 36 KV |
| Mechanical Specifications: |
| 1. Material : Rubber. |
| 2. Hardness : 65 ± 5 Shore “A”. |
| 3. Specific Gravity : 1.5 gm/cm3. |
| 4. Tensile Strength : 50 kg/cm2 (min.) |
| 5. Elongation at Break : 250% (min.) |
| 6. Compression Set : 40% (at 27°C for 24 hrs) |
| 7. Temp. Range : -30 °C to +70 °C. |
| 8. Oil Resistance : Satisfactory. |
| 9. Acid Resistance : Fair. |
Features of Insulating Mats
- Can withstand up to 50KV (Class 3).
- Suitable for both AC & DC Installations.
- Electrical Mat is hard wearing, non-slip and can be easily clean or washed with a mild detergent.
- Anti-fatigue nature, comfort feet while standing for prolonged period.
- Every mat is subjected to rigorous Voltage testing & high tension control before they supplied to the customer for satisfactory working.
- Matting is packed in 10meter rolls to avoid joints, however cut lengths are also supplied.
- Conformity with the IEC 61111-2009 requirements.
- Each Meter is marked with class, Working, Proof & Break down Voltage.

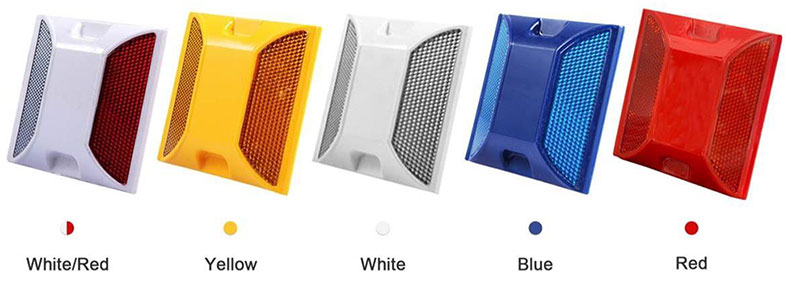

Road Studs (Ceramic Aluminum, plastic & solar)
The Road Stud can help to reduce accident at regional rail crossing, intersection and provide gudiance and hazard warning to drivers in darkness and bed weathers
Five Colors for Choose
Specification
| Body material : ABS |
| Lens material : PMMA |
| Size : 100*100*18mm |
| Color : Red, Yellow, White, Blue, Green |
| Packing : 100pcs/ctn( 20 pcs/box, 5 box/ctn) |
| Carton Size : 56*22.5*22.2cm |
| NW/GW : 18 kgs / 19kgs |
| Filling : Epoxy + Quartz sand |
| Quality : ASTM D4280 & EN1463-1 standard |
| Weight : 180g |

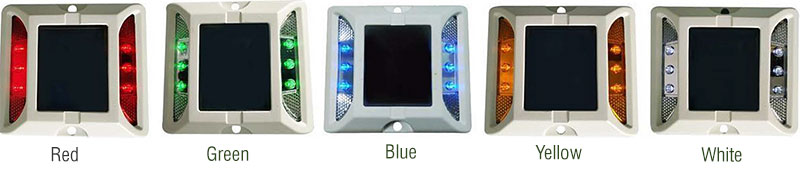

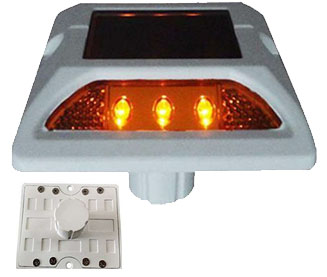

Solar Road Stud NK-RS-A6-1
Solar Road Stud Specification
| Material: Aluminum(GB-ADC12 )+PC(Japan Brand) |
| Power supply: 2.5V/150MA for NI-MH battery; 5V/ 60MA for Lithum battery; 3V/120MA for super capacitor |
| Battery: NI-MH l.2V/ 600mah; Lithum battery 3.2V/500MA; Super capacitor 2.3V/120F |
| Working model: Blinking or constant (charged at daytime and working automatically at night) |
| Visual distance: more than 800 m |
| Waterproof: IP68 |
| Resistance: Above 30T(can be installed in the middle of road) |
| Life span: 2 years for NI-MH battery, 5years for Lithum battery, l0 years for super capacitor |
| Two sizes for choose: Size: L l25*W l07*H25+55 mm Size: L l25*Wl07*H25 mm |

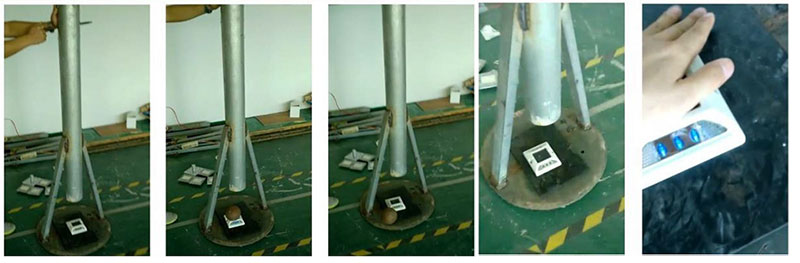

Compression Test
